Tube Radio Guitar Amp: Part 3 Making Plans – Vox Pacemaker 1965

Yes, there is a very nice and decent guitar amp hidden inside this scruffy old Philips radio, all the components except a suitable output transformer and speaker are present to solder up this nice gem:

Huh? Why? How?

Power rectifier EZ81 — If you are in Europe and hunting for tube radio with any value in the guitar amp field, check for this rectifier tube. If you see it, buy the radio!  This tube is used is the early Vox amp, up to the AC15 as power rectifier.  Most vintage American amp you will be looking at require at least 3 different voltage from the transformers: a high voltage, 6.3V for the tube filaments and 5V for the rectifier. The EZ81 does not require the special 5V, just feeds off the high voltage.

phillipspowersectionIn this way, it is just like a Vox Pacemaker — although below schematic is from a Cambridge Reverb (the same amp + reverb):cambridgereverbpower

Or an AC-15, also using an EZ81:

ac15_detail

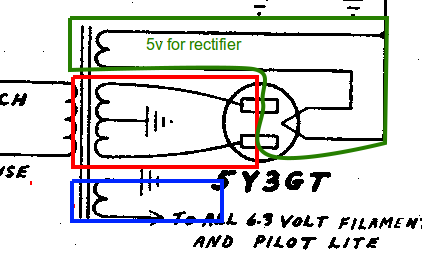

And all of these are unlike any 50’s Fender amp, which require three voltages on the transformer 6.3V, HV and 5V especially for the rectifier:

5e3_rectifier
Transformer and rectifier tube in a Fender 5E3 Tweed Deluxe amplifier.

2 Power tubes EL84 & 1 Preamp tube ECC83 — if the transformer can power this in our radio, we need only one extra ECC83 tube to make a Vox Pacemaker. It uses 2 x EL84, 2 x ECC83 and an EZ81.  The Philips radio powers and additional 5 tubes for RF purposes, so it is certain that this transformer from a piece of €10 junk can function as the heart of a Vox Pacemaker, Vox AC-15 or Marshall 18W…. value: $75. My calculation seems to indicate this transformer could pull 5.4A on the high voltage.  I don’t believe you could find one that would feed anything more than a 25W amp.

Voxpacemaker_corrected

The only thing that is missing, is the output transformer, which will cost around €50. Chassis, resistors (after measuring), 6.3V pilot light and mounting screw can all be salvage from the zombie corpse.

I really think you could use a lot of the power transformers in old radios, but the output transformers from household radio sets will never be strong enough.
